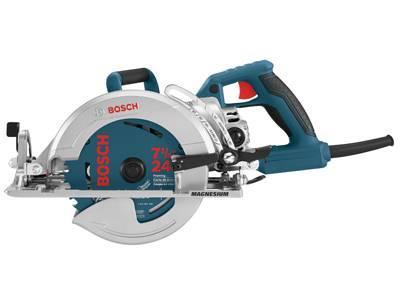

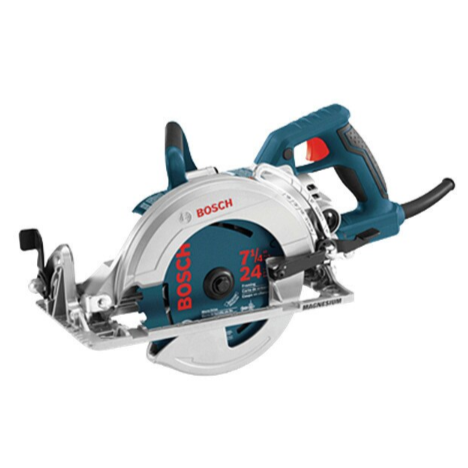

The CSW41's worm drive system features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control, and accuracy, and you've got one exceptional piece of equipment.
Includes:
Includes:
- CSW41 7-¼ in. Magnesium Worm Drive
- (1) Multi-Function Blade Wrench
- (1) Carbide Blade
- Built in Saw Hook
Features:

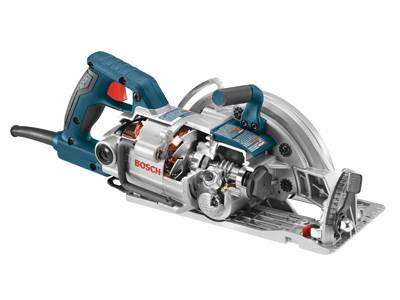

- Light weight magnesium motor housing and foot plate construction – lighter weight saw reduces user fatigue for less down time
- Built-in saw hook – allows convenient saw storage between cuts
- Featherboard multi-function wrench – for blade and brush change, lever adjustments and blade diamond center knockout
- Accurate depth of cut system allows for quick accurate adjustment
- Left side blade design for unmatched clarity of cut line
- Anti-snag lower guard - provides smooth operation for small cut-off pieces
- Soft-grip handles for comfort and control
- 53˚ bevel capacity with positive detent stop at 45˚
- Large adjustment levers for fast, accurate bevel and depth adjustments
- Easy access spindle lock for easy blade changes
- Powerful 15 amp motor provides power for a variety of cutting applications
| Amperage | 15.0 |
| Arbor Size | Diamond |
| Bevel | 53° |
| Blade Diameter | 7.0 |
| Blade Size | 7-1/4" |
| Case Type | No Case Included |
| Depth of Cut | 2-3/8" |
| Dust Blower | No |
| Dust Collection | No |
| Electric Motor Brake | No |
| Height | 9.0" |
| Length | 20.75" |
| Max. Bevel Capacity (°) | 53.0 |
| Max. Depth of Cut at 45 Deg. | 1-15/16" |
| Max. Depth of Cut at 50 Deg. | 1-13/16" |
| Max. Depth of Cut at 90 Deg. | 2-3/8" |
| Rating | 120 V |
| Voltage | 120V |
| Weight | 12.3lb |
| Works With |
Rip Fence WD7RIP Worm-Drive Saw Lubricant Oil WD7LUB |
